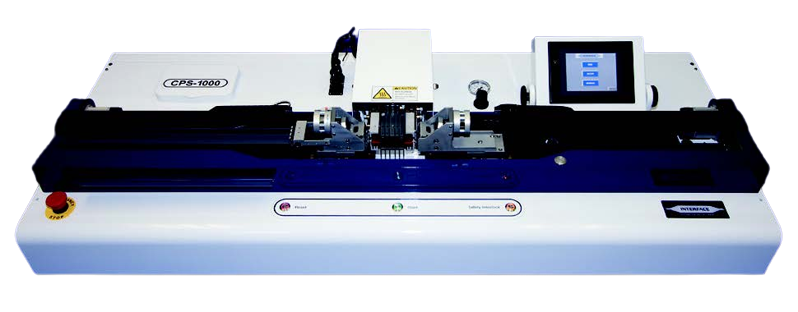

CPS-1000: Computerized Parison Stretcher

The Confluent Medical Technologies CPS-1000 is a system designed to stretch or neck-down tubing parisons in preparation for the balloon forming process. It is easily programmable through the tilt touchscreen and capable of storing multiple program parameters with an operator lock-out option.

Parameters Include

Stretch Speed
Temperature
Distance
Timing
Tension Control (relax)

Key Features

High throughput with up to 3 tubes per cycle
Easily programmable using the tilt touchscreen
PLC-controlled with program storage
Password lockout
Uniform stretched tubing with repeatable results

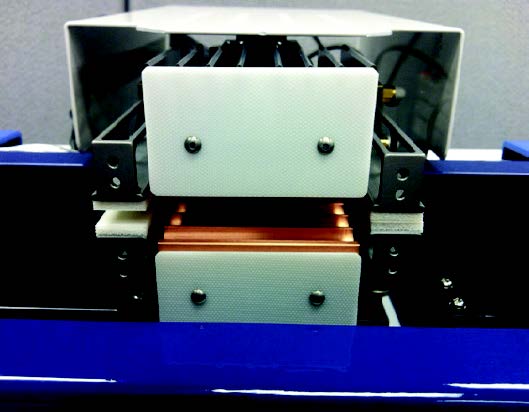

Three heater jaws available for a wide range of balloon tubing materials and sizes

Specifications

Dimensions:	60.5” W x 22.0” D x 17.8” H 1,537 mm x 559 mm x 452 mm
Electrical Power:	110 VAC 60 Hz F 6.25A 250 VAC 220-240 VAC 50 Hz F 5A 250 VAC
Maximum Stretch Distance:	350 mm each direction (13.78”)
Temperature Range:	Up to 400°F (204°C)
Stretch Speed:	1 to 240 mm/sec
Programmable Storage:	50 recipe storage capacity
